Plasma gas measuring kit, a mix of Draeger gas detection tubes for use with the Draeger Accuro pump, specifically selected for measuring ozone and NOx gases produced by atmospheric plasma processes by any manufacturer.
Using the sealed and calibrated test tubes is simple and quick, providing accurate and reliable results in minutes for spot checks around plasma process systems.
In the box:

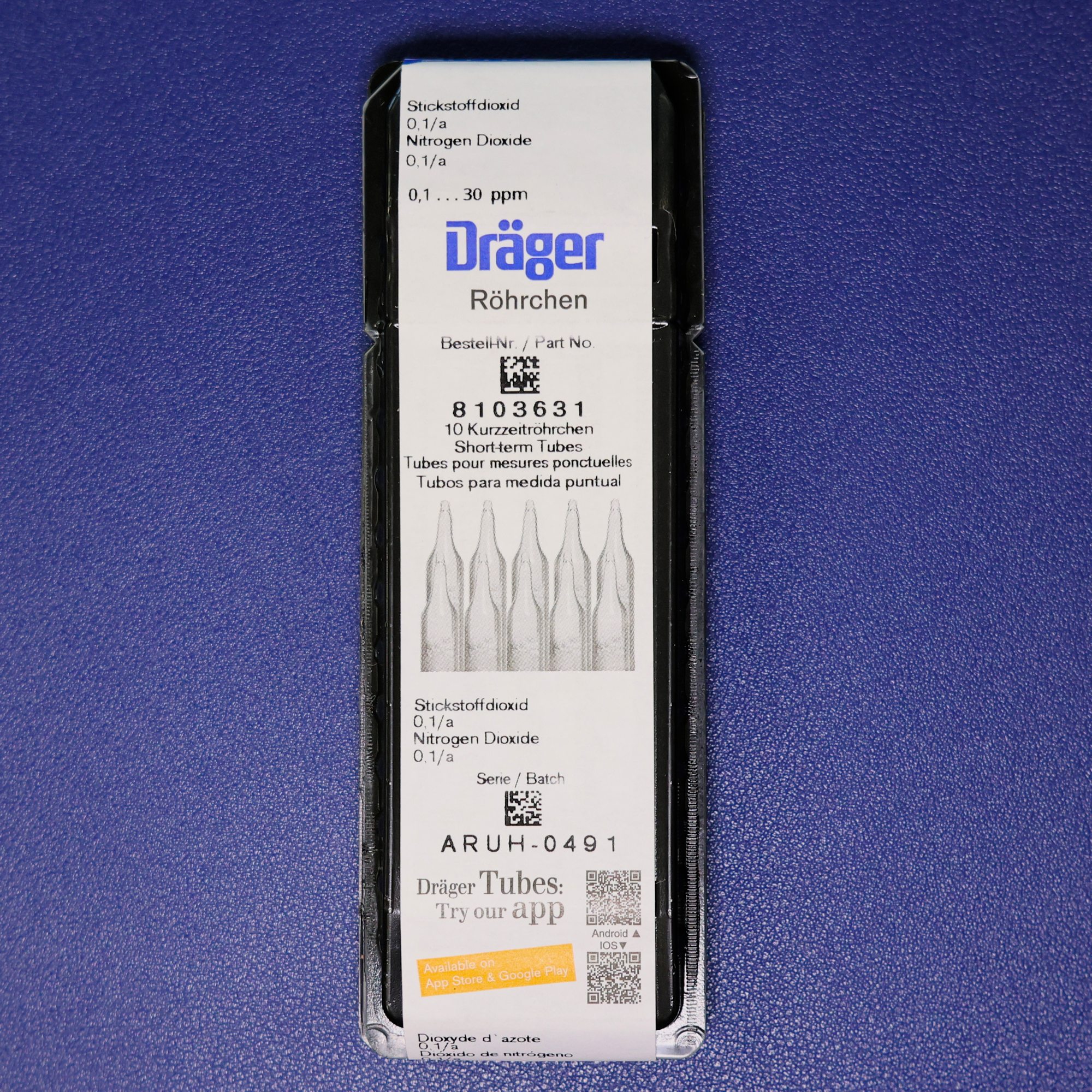

1x Nitrogen Dioxide Detection Tubes (0.1ppm to 30ppm) – Pack of 10

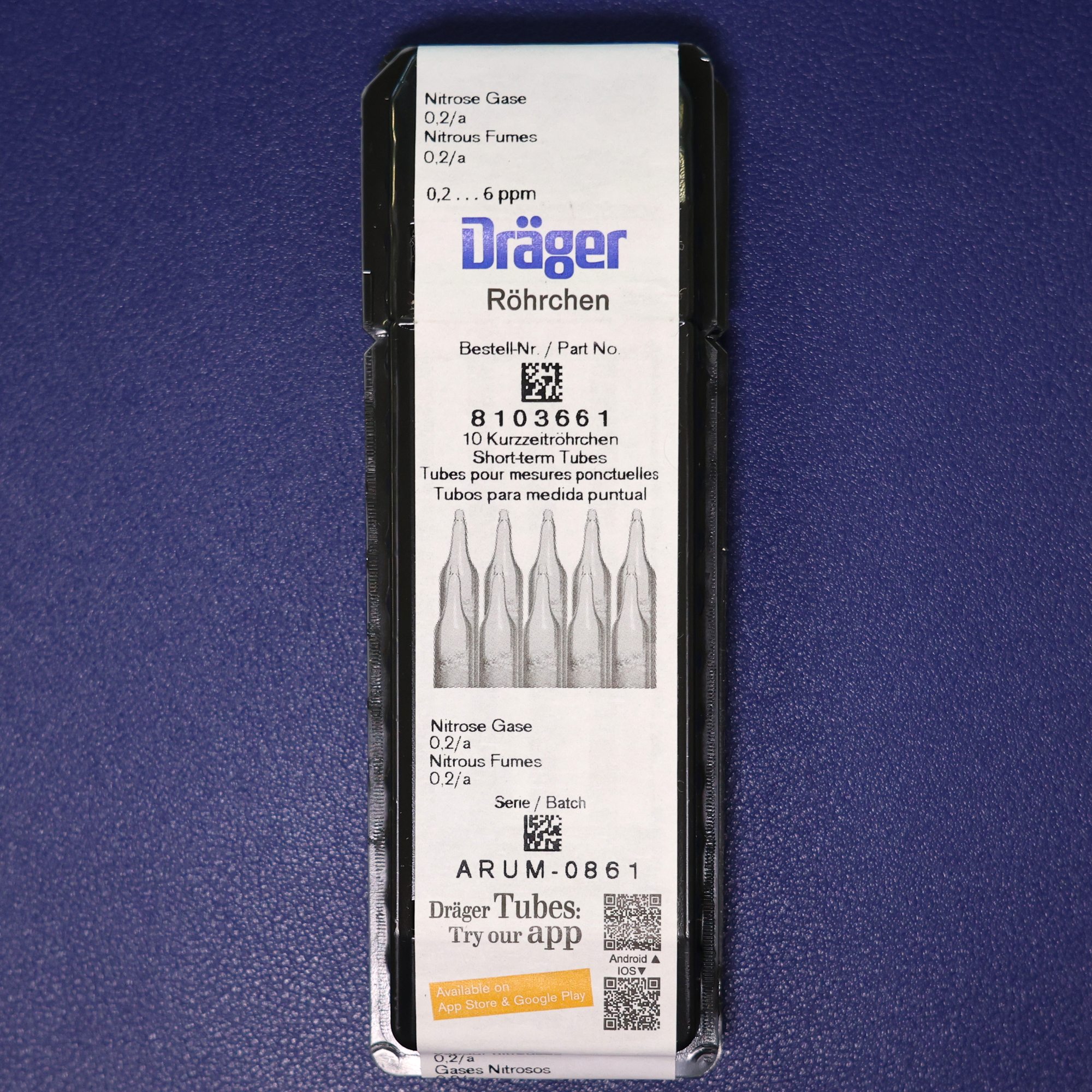

1x Nitrous Fumes Detection Tubes (0.2ppm to 6ppm) – Pack of 10

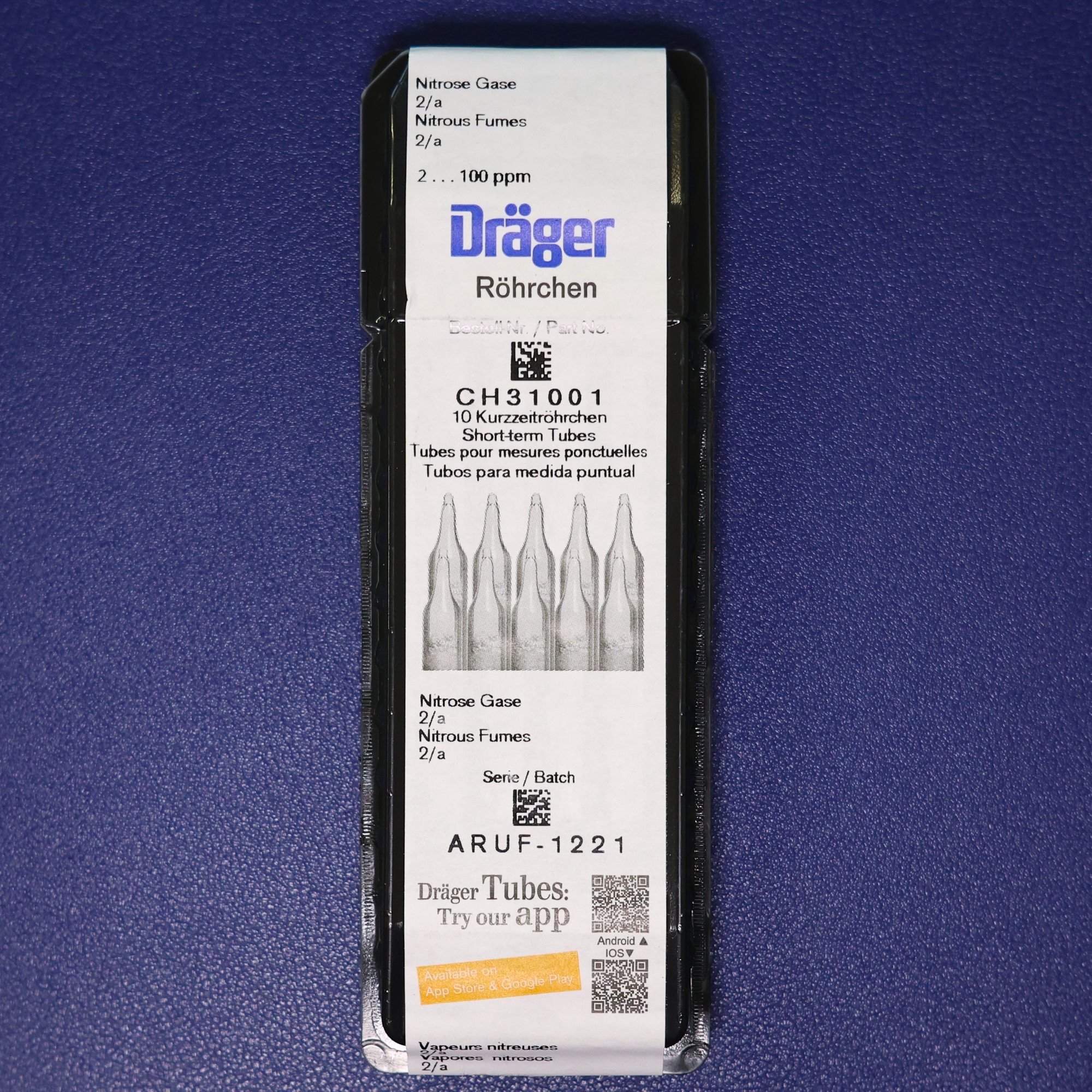

1x Nitrous Fumes Detection Tubes (2ppm to 100ppm) – Pack of 10

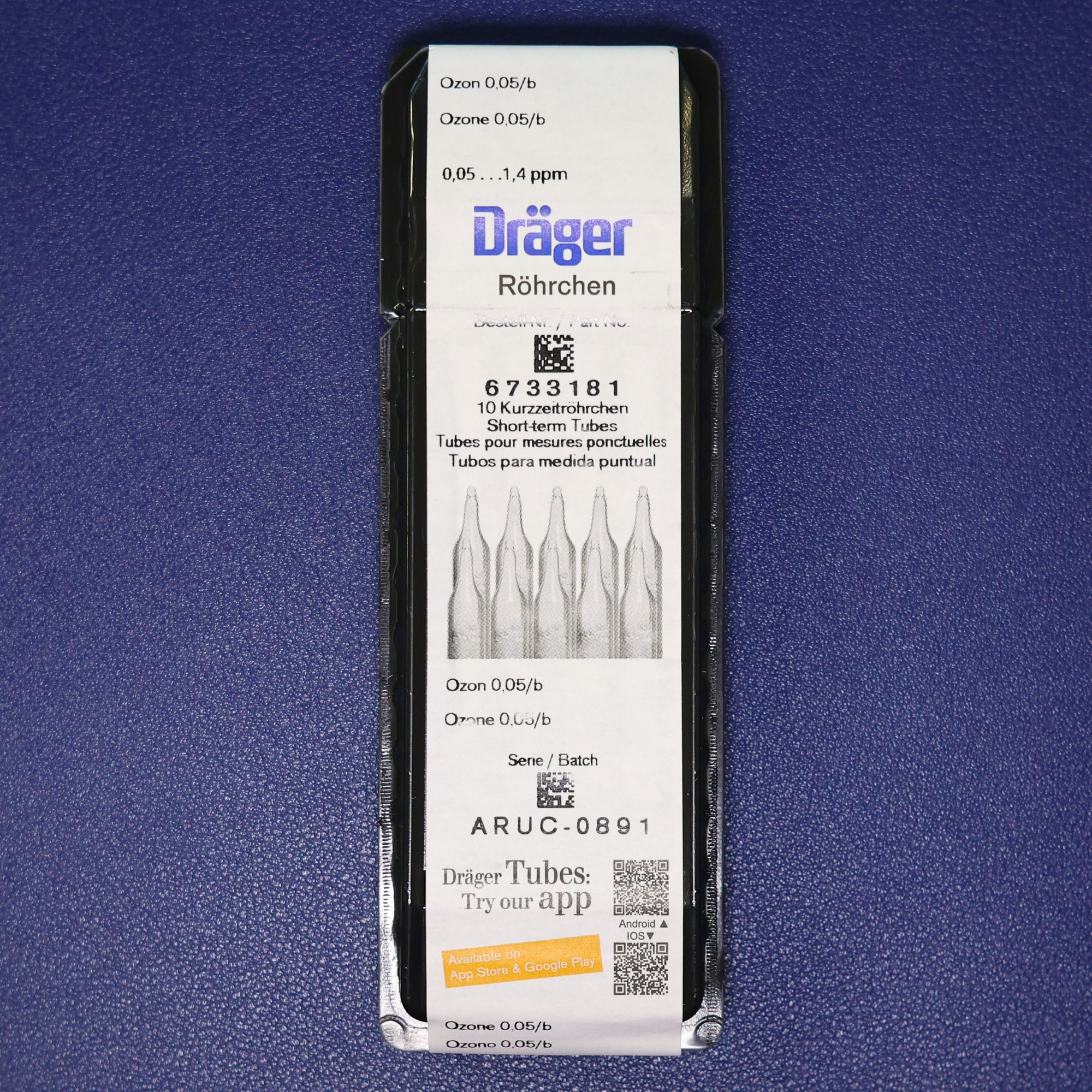

1x Ozone Detection Tubes (0.05ppm to 1.4ppm) – Pack of 10
£300.00
Measuring using the Accuro pump is straight forward, take the detection tube of your choice and remove the ends using the opener provided. Place the tube in to the Accuro holder with the arrow pointing toward the hand held unit.
On all tubes there will be a n= number which is the number of samples needed to get the result, obtained by squeezing the accuro pump until the counter changes.
Once the test is complete you can observe the colour difference of the test material and measure the value on the printed tube. Make sure to keep a record of these values as tubes may change colour over time as they’re exposed to air.
Any reference to occupational or working exposure limits should be checked with your local health and safety advice – such as the UK Governements EH40 document.
